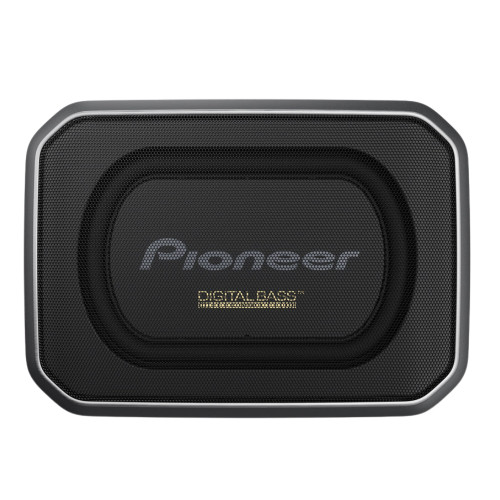

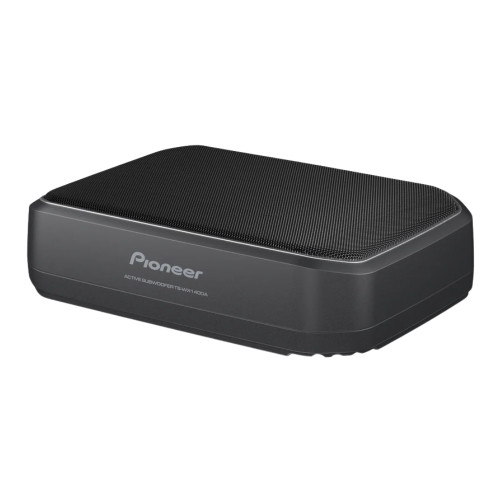

Open Box Pioneer TS-WX140DA 8" 50W RMS Class D Amp Compact Powered Subwoofer

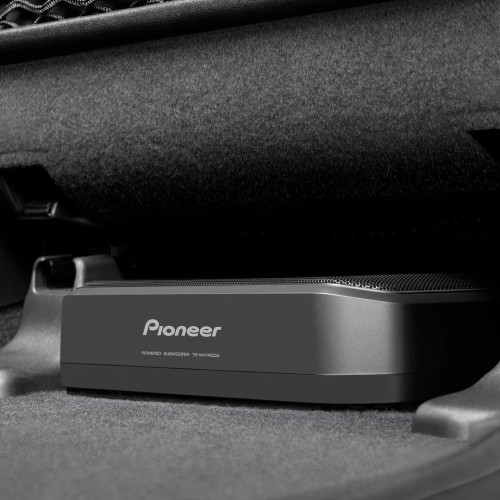

The Pioneer TS-WX140DA compact amplified subwoofer delivers powerful bass performance in a space-saving design, making it ideal for under-seat or limited-space installations. Featuring a built-in amplifier with up to 170 watts of maximum power, this subwoofer enhances low-frequency response while maintaining efficient, ultra-low current consumption. Designed for easy integration into a wide range of vehicles, it provides deep, dynamic bass to upgrade your car audio system without taking up valuable space.
Product Highlights:
- Condition: Open Box
- Built-in 170 W (Max) Class D amplifier
- 8" x 5.25" aluminum rectangular cone
- Efficiency: 95–100 dB (in-car, 2V input)
- Built-in crossover: 50–125 Hz @ 12dB/Oct
- DSP Bass Modes: Deep / Natural / Dynamic
- Wired bass remote included (controls volume, crossover, bass mode, phase)
- Box dimensions: 11.75" × 2.75" × 7.785" (WxHxD)
- Amp power: 14.4 V DC, max current 4.3 A
- Continuous RMS power: 50 W
- Frequency response: Deep 20–200 Hz, Natural 40–200 Hz, Dynamic 40–160 Hz
- Sensitivity: Deep 95 dB, Natural 98 dB, Dynamic 100 dB
- Speaker line input sensor: Deep 1.2V/5KΩ
- System type: Powered
- Grounding: Negative
- Subwoofer grille: Fully covered steel mesh
- Woofer material: Cellulose fiber cone, iron plate basket, urethane surround
- Damper: Aramid fiber, drive cone: blended pulp
- Magnet: Ferrite, 17.2 oz
- Voice coil: Single, copper, heat-resistant, glass imide bobbin
